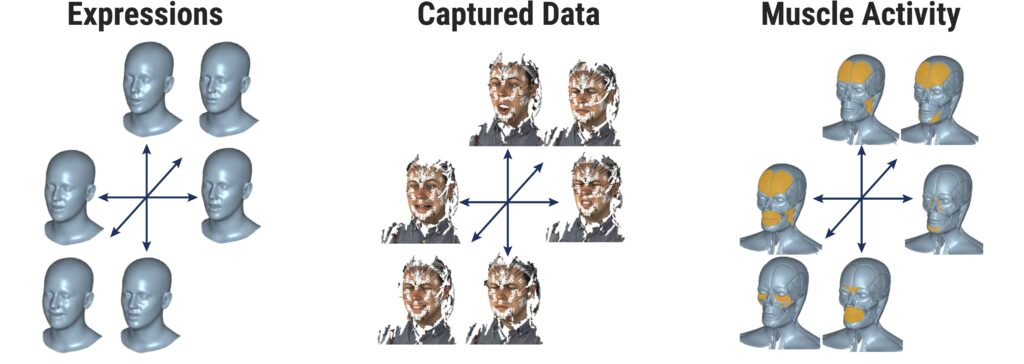

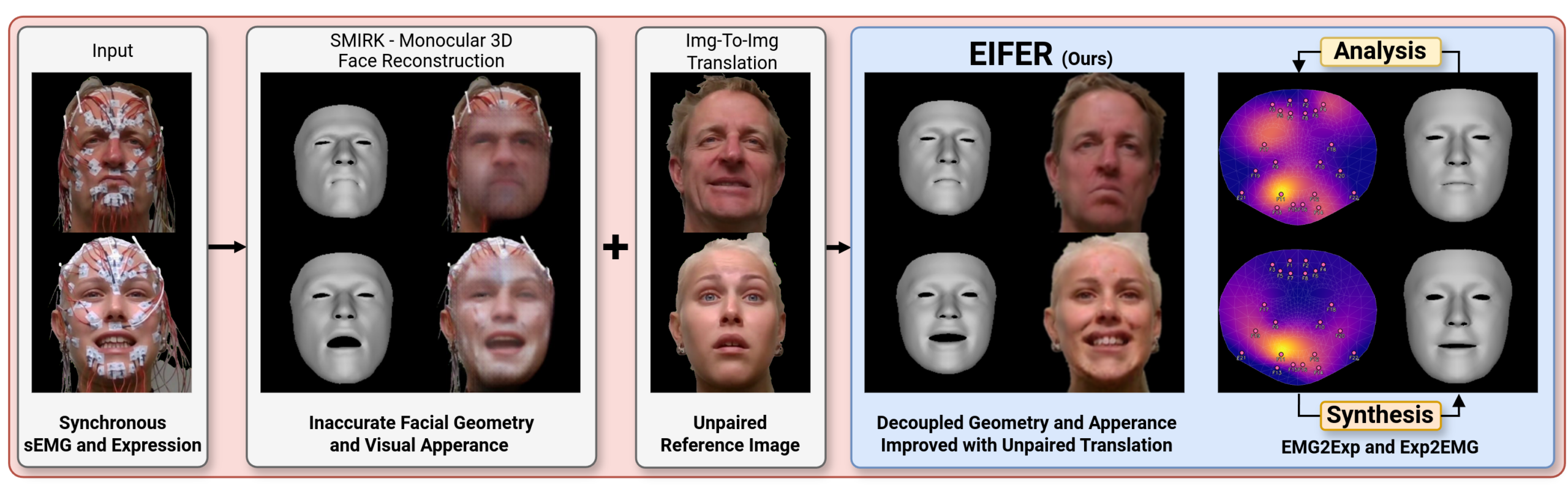

The relationship between muscle activity and resulting facial expressions is crucial for various fields, including psychology, medicine, and entertainment. The synchronous recording of facial mimicry and muscular activity via surface electromyography (sEMG) provides a unique window into these complex dynamics. Unfortunately, existing methods for facial analysis cannot handle electrode occlusion, rendering them ineffective. Even with occlusion-free reference images of the same person, variations in expression intensity and execution are unmatchable. Our electromyography-informed facial expression reconstruction (EIFER) approach is a novel method to restore faces under sEMG occlusion faithfully in an adversarial manner. We decouple facial geometry and visual appearance (e.g., skin texture, lighting, electrodes) by combining a 3D Morphable Model (3DMM) with neural unpaired image-to-image translation via reference recordings. Then, EIFER learns a bidirectional mapping between 3DMM expression parameters and muscle activity, establishing correspondence between the two domains. We validate the effectiveness of our approach through experiments on a dataset of synchronized sEMG recordings and facial mimicry, demonstrating faithful geometry and appearance reconstruction. Further, we synthesize expressions based on muscle activity and how observed expressions can predict dynamic muscle activity. Consequently, EIFER introduces a new paradigm for facial electromyography, which could be extended to other forms of multi-modal face recordings.

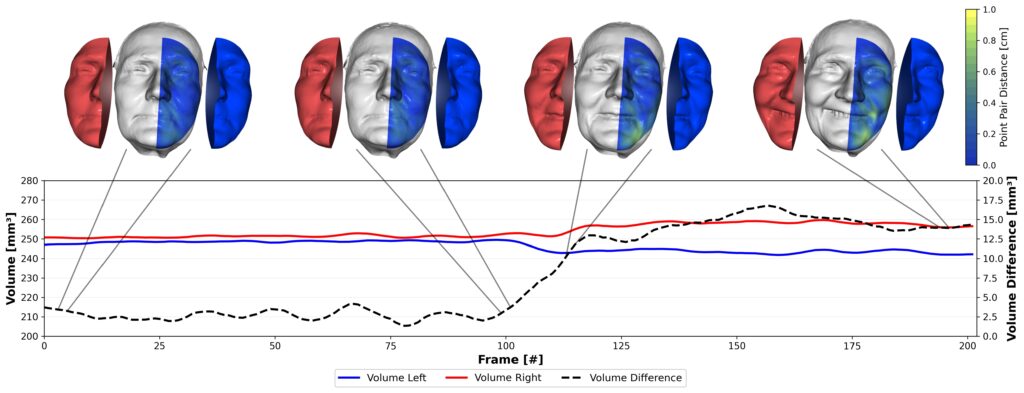

The research on facial palsy, a unilateral palsy of the facial nerve, is a complex field with many different causes and symptoms. Even modern approaches to evaluate the facial palsy state rely mainly on stills and 2D videos of the face and rarely on dynamic 3D information. Many of these analysis and visualization methods require manual intervention, which is time-consuming and error-prone. Moreover, they often depend on alignment algorithms or Euclidean measurements and consider only static facial expressions. Volumetric changes by muscle movement are essential for facial palsy analysis but require manual extraction. We propose to extract an estimated unilateral volumetric description for dynamic expressions from 3D scans. Accurate landmark positioning is required for processing the unstructured facial scans. In our case, it is attained via a multi-view method compatible with any existing 2D predictors. We analyze prediction stability and robustness against head rotation during video sequences. Further, we investigate volume changes in static and dynamic facial expressions for 34 patients with unilateral facial palsy and visualize volumetric disparities on the face surface. In a case study, we observe a decrease in the volumetric difference between the face sides during happy expressions at the beginning (13.8 +- 10.0 mm3) and end (12.8 +- 10.3 mm3) of a ten-day biofeedback therapy. The neutral face kept a consistent volume range of 11.8-12.1 mm3. The reduced volumetric difference after therapy indicates less facial asymmetry during movement, which can be used to monitor and guide treatment decisions. Our approach minimizes human intervention, simplifying the clinical routine and interaction with 3D scans to provide a more comprehensive analysis of facial palsy.

Although patients with facial palsy often complain of disturbed eye blinking which may lead to visual impairment, a blinking analysis is not part of routine grading of facial palsy. Twenty minutes of spontaneous eye blinking at rest of 30 patients with facial palsy (6 with acute palsy; 24 patients with facial synkinesis; median age: 58~years, 67\% female), and 30 matched healthy probands (median age: 57~years; 67\% female) was smart phone video recorded. A custom computer program automatically extracted eye measures and determined the eye closure rate (eye aspect ratio [EAR]), blink frequency, and blink duration. Facial Clinimetric Evaluation (FaCE), Facial Disability Index (FDI) were assessed as patient-reported outcome measures. The minimal EAR, i.e., minimal visible eye surface during blinking, was significantly higher on the paretic side in patients with acute facial palsy than in patients with synkinesis or in healthy controls. The blinking frequency on the affected side was significantly lower in both patient groups compared to healthy controls. Vice versa, blink duration was longer in both patient groups. There was no clear correlation between the blinking values and FaCE and FDI. Blinking parameters are easy to estimate automatically and add a functionally important parameter to facial grading.

Understanding expressions is vital for deciphering human behavior, and nowadays, end-to-end trained black box models achieve high performance. Due to the black-box nature of these models, it is unclear how they behave when applied out-of-distribution. Specifically, these models show decreased performance for unilateral facial palsy patients. We hypothesize that one crucial factor guiding the internal decision rules is facial symmetry. In this work, we use insights from causal reasoning to investigate the hypothesis. After deriving a structural causal model, we develop a synthetic interventional framework. This approach allows us to analyze how facial symmetry impacts a network's output behavior while keeping other factors fixed. All 17 investigated expression classifiers significantly lower their output activations for reduced symmetry. This result is congruent with observed behavior on real-world data from healthy subjects and facial palsy patients. As such, our investigation serves as a case study for identifying causal factors that influence the behavior of black-box models.

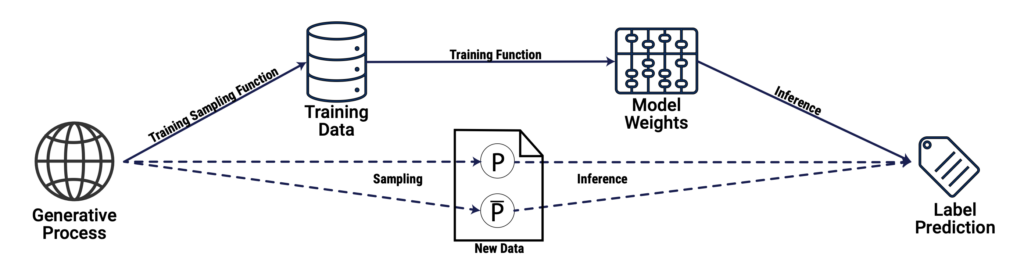

Facial expression-based human emotion recognition is a critical research area in psychology and medicine. State-of-the-art classification performance is only reached by end-to-end trained neural networks. Nevertheless, such black-box models lack transparency in their decisionmaking processes, prompting efforts to ascertain the rules that underlie classifiers' decisions. Analyzing single inputs alone fails to expose systematic learned biases. These biases can be characterized as facial properties summarizing abstract information like age or medical conditions. Therefore, understanding a model's prediction behaviorrequires an analysis rooted in causality along such selected properties. We demonstrate that up to 91.25\% of classifier output behavior changes are statistically significant concerning basic properties. Among those are age, gender, and facial symmetry. Furthermore, the medical usage of surface electromyography significantly influences emotion prediction. We introduce a workflow to evaluate explicit properties and their impact. These insights might help medical professionals select and apply classifiers regarding their specialized data and properties.

Introduction: Surface electromyography (sEMG) is an effective technique for studying facial muscles. However, although it would be valuable, the simultaneous acquisition of 2D facial movement videos creates incompatibilities with analysis methodologies because the sEMG electrodes and wires obstruct part of the face. The present study overcame these limitations using machine learning mechanisms to make the sEMG electrodes disappear artificially (artificial videos with removed electrodes). Material \& Methods: We recorded 36 probands (18-67 years, 17 male, 19 female) and measured their muscular activity using two sEMG schematics [1], [2], totaling 60 electrodes attached to the face [3]. Each proband mimicked the six basic emotions four times randomly, guided by an instructional video. Minimal Change CycleGANs were used to make reconstruction videos without sEMG electrodes [4], [5]. Finally, the emotions expressed by the probands were classified with ResMaskNet [6]. Results: We quantitatively compared the sEMG data and reconstructed videos with reference recordings. The artificial videos achieved a Fréchet Inception Distance [10] score of 0.50 \pm 0.74, while sEMG videos scored 10.46 \pm 2.10, indicating high visual quality. With electrodes attached, we yield an emotion classification accuracy of 34 \pm 10\% (equivalent to two-category random guessing). Our approach obtained up to 83\% accuracy for the removed electrodes. Conclusions: Our techniques and studies enable simultaneous analysis of muscle activity and facial movements. We reconstruct facial regions obstructed by electrodes and wires, preserving the underlying expression. Our data-driven and label-free approach enables established methods without further modifications. Supported by DFG DE-735/15-1 and DFG GU-463/12-1

Introduction: Using grading systems, the severity of facial palsy is typically classified through static 2D images. These approaches fail to capture crucial facial attributes, such as the depth of the nasolabial fold. We present a novel technique that uses 3D video recordings to overcome this limitation. Our method automatically characterizes the facial structure, calculates volumetric dispari8es between the affected and contralateral side, and includes an intuitive visualization. Material: 35 patients (mean age 51 years, min. 25, max. 72; 7 \male, 28 \venus) with unilateral chronic synkinetic facial palsy were enrolled. We utilized the 3dMD face system (3dMD LCC, Georgia, USA) to record their facial movements while they mimicked happy facial expressions four times. Each recording lasted 6.5 seconds, with a total of 140 videos. Results: We found a difference in volume between the neutral and happy expressions: 11.7 \pm 9.1 mm3 and 13.73 \pm 10.0 mm3 , respectively. This suggests that there is a higher level of asymmetry during movements. Our process is fully automa8c without human intervention, highlights the impacted areas, and emphasizes the differences between the affected and contralateral side. Discussion: Our data-driven method allows healthcare professionals to track and visualize patients' volumetric changes automatically, facilitating personalized treatments. It mitigates the risk of human biases in therapeutic evaluations and effectively transitions from static 2D images to dynamic 4D assessments of facial palsy state. Supported by DFG DE-735/15-1 and DFG GU-463/12-1

Introduction: The severity of facial palsy is typically assessed using grading systems based on 2D image analysis [1]. Thus,the full range of facial features, especially depth information, is neglected. The present study employed 3D video-based methods to measure volume disparities during dynamic facial movements [2], [3], overcoming prior limitations. In addition, impacted areas were highlighted on the scan for an intuitive visualization. Material \& Methods: 35 patients (25-72 years; 28 female) with unilateral chronic synkinetic facial palsy were recorded with the 3dMD face system (3dMD LCC, Georgia, USA) at the beginning and end of 10-day biofeedback therapy focused on more symmetric facial expressions. The patients mimicked a happy facial expression four times, each recording lasting 6.5 seconds, totaling 280 videos. We used the Curvature of Radial Curves (CORC) [2] as a dense face descriptor and followed our previous method [3] to estimate the volume changes. Results: We found a reduced volume difference between contralateral and paretic side during the happy expression at therapy beginning (13.73 \pm 10.0 mm3) and end (12.79 \pm 10.3 mm 3). The neutral face remained unchanged in the ranges of 11.77-12.07 mm 3. This indicated a lower asymmetry during movements after therapy and could be used as an objective measurement during training for a successful therapy. Conclusions: Our data-driven method enables tracking and visualizing volume disparities between the paretic and contralateral sides. We reduce human bias during evaluation, personalize treatment, and shift 2D image assessments of facial palsy to dynamic 4D evaluations. Supported by DFG DE-735/15-1 and DFG GU-463/12-1

Einleitung: Der emotionale Gesichtsausdruck (EG) ist essentiell für soziale Interaktionen und die Kommunikation. Dessen Dynamik ist interdisziplinär für die Evaluation von Erkrankungen vielversprechend, die Studienlage jedoch limitiert. Ziel war die Entwicklung eines Paradigmas zur Quantifizierung der Dynamik des EG und deren Mediation durch den Emotional-Contagion (EC)-Effekt. Methode: EGs von 5 Basisemotionen reaktiv auf explizite motorische Zielvorgaben wurden mit einem 3-D-Kamerasystem aufgezeichnet (N = 31) und durch maschinelles Lernen analysiert. Reaktionsbeginn (onset timestamp), maximale Intensität und deren Zeitpunkt (apex value, apex timestamp) wurden analysiert. Zur Exploration von EC wurden verschiedene Stimuli (Abbildungen von EGs und emotionalen Adjektiven) präsentiert: Die Hypothese war, dass die Imitation von EGs EC induzieren, die Prozesse sich mutuell verstärken würden und dies durch einen früheren onset- und apex timestamp sowie höheren apex value repräsentiert würde. Ergebnisse: Die Hypothese wurde für alle Parameter für Freude und Angst und den apex timestamp für überraschung bestätigt, bei dem apex value für Wut widerlegt. Dies deutet an, dass EC potentiell die Dynamik moduliert, dessen Induktion jedoch (sozio)kognitiven Kontrollprozessen unterliegt. Respektive scheinen die Verarbeitung von EGs durch semantisch-konzeptuelle verbale Informationen moduliert und linguistische und emotionale Reize potentiell interagierend prozessiert zu werden. Weitere Analysen zeigten im Widerspruch zu der Universalitätshypothese des EG inter- und intraindividuelle Varianzen der Mimik. Schlussfolgerung: Die Methodik bietet große Chancen in der Diagnostik und Therapie von Fazialisparesen verschiedener ätiologie und der postoperativen Nachsorge von Fazialisrekonstruktionen. Deutsche Forschungsgemeinschaft (GU-463/12-1)

Comprehending facial expressions is essential for human interaction and closely linked to facial muscle understanding. Typically, muscle activation measurement involves electromyography (EMG) surface electrodes on the face. Consequently, facial regions are obscured by electrodes, posing challenges for computer vision algorithms to assess facial expressions. Conventional methods are unable to assess facial expressions with occluded features due to lack of training on such data. We demonstrate that a CycleGAN-based approach can restore occluded facial features without fine-tuning models and algorithms. By introducing the minimal change regularization term to the optimization problem for CycleGANs, we enhanced existing methods, reducing hallucinated facial features. We reached a correct emotion classification rate up to 90\% for individual subjects. Furthermore, we overcome individual model limitations by training a single model for multiple individuals. This allows for the integration of EMG-based expression recognition with existing computer vision algorithms, enriching facial understanding and potentially improving the connection between muscle activity and expressions.

The human face is one of the most crucial parts in interhuman communication. Even when parts of the face are hidden or obstructed the underlying facial movements can be understood. Machine learning approaches often fail in that regard due to the complexity of the facial structures. To alleviate this problem a common approach is to fine-tune a model for such a specific application. However, this is computational intensive and might have to be repeated for each desired analysis task. In this paper, we propose to reconstruct obstructed facial parts to avoid the task of repeated fine-tuning. As a result, existing facial analysis methods can be used without further changes with respect to the data. In our approach, the restoration of facial features is interpreted as a style transfer task between different recording setups. By using the CycleGAN architecture the requirement of matched pairs, which is often hard to fullfill, can be eliminated. To proof the viability of our approach, we compare our reconstructions with real unobstructed recordings. We created a novel data set in which 36 test subjects were recorded both with and without 62 surface electromyography sensors attached to their faces. In our evaluation, we feature typical facial analysis tasks, like the computation of Facial Action Units and the detection of emotions. To further assess the quality of the restoration, we also compare perceptional distances. We can show, that scores similar to the videos without obstructing sensors can be achieved.

The research of facial palsy, a unilateral palsy of the facial nerve, is a complex field of study with many different causes and symptoms. Even modern approaches to evaluate the facial palsy state rely mainly on stills and 2D videos of the face and rarely on 3D information. Many of these analysis and visualization methods require manual intervention, which is time-consuming and error-prone. Moreover, existing approaches depend on alignment algorithms or Euclidean measurements and consider only static facial expressions. Volumetric changes by muscle movement are essential for facial palsy analysis but require manual extraction. Our proposed method extracts a heuristic unilateral volumetric description for dynamic expressions from 3D scans. Accurate positioning of 3D landmarks, problematic for facial palsy, is automated by adapting existing methods. Additionally, we visualize the primary areas of volumetric disparity by projecting them onto the face. Our approach substantially minimizes human intervention simplifying the clinical routine and interaction with 3D scans. The proposed pipeline can potentially more effectively analyze and monitor patient treatment progress.

Electromyography (EMG) is a method to measure muscle activity. Physicians also use EMG to study the function of facial muscles through intensity maps (IMs) to support diagnostics and research. However, many existing visualizations neglect proper anatomical structures and disregard the physical properties of EMG signals. Especially the variance of facial structures between people complicates the generalization of IMs, which is crucial for their correct interpretation. In our work, we overcome these issues by introducing a pipeline to generate anatomically correct IMs for facial muscles. An IM generation algorithm is proposed based on a template model incorporating custom surface EMG schemes and combining them with a projection method to highlight the IMs on the patient's face in 2D and 3D. We evaluate the generated and projected IMs based on their correct projection quality for six base emotions on several subjects. These visualizations deepen the understanding of muscle activity areas and indicate that a holistic view of the face could be necessary to understand facial muscle activity. Medical experts can use our approach to study the function of facial muscles and to support diagnostics and therapy.

Sparse evidence of the potentialities of surface stimulation (ES) for preventing muscle atrophy in patients with acute or chronic facial palsy have been published so far. Especially studies addressing objective imaging methods for paralysis quantification are currently required. Facial muscles as principal target of ES can be directly quantified via ultrasound, a swiftly feasible imaging method. Our study represents one of the few systematic evaluations of this approach within patients with complete unilateral facial paralysis. Methods A well-established ultrasound protocol for the quantification of area and grey levels was used to evaluate therapeutical effects on patients with facial paralysis using ES. Only patients with complete facial paralysis confirmed by needleelectromyography were included. Individual ES parameters were set during the first visit and confirmed/adapted every month thereafter. At each visit patients additionally underwent facial needle-electromyography to rule out reinnervation as well as ultrasound imaging of 7 facial and 2 chewing muscles. Results In total 15 patients were recruited (medium 53 years, min. 25, max. 78; 8 female, 7 male). They underwent ES for a maximum of 1 year without serious adverse events. All patients were able to follow the ES protocol. First results in the assessment of ultrasound imaging already indicate that electrically stimulated paralytic muscles do not experience any further cross-sectional area decrease in comparison to the contralateral side. Non-stimulated muscles do not provide significant changes. Similar effects on grey levels currently remain to be assessed to draw further conclusions. Conclusion ES is supposed to decelerate the process of atrophy of facial muscles in patients with complete facial paralysis. Thus, the muscular cross-sectional area does not seem to aggravate during the period of electrostimulation within sonographic assessment. This demonstrates the benefit of ES regarding the facial muscle atrophy in patients with complete facial paralysis.

Few studies showing therapeutic potentials of electrical stimulation (ES) of the facial surface in patients with facial palsy have been published so far. Not only muscular atrophy of the facial muscles but facial disfigurement represents the main issue for patient well-being. Therefore, objective methods are required to detect ES effects on facial symmetry within patients with complete unilateral facial paralysis. Methods Only patients with one-sided peripheral complete facial paralysis confirmed by needle-EMG were included and underwent ES twice a day for 20 min until the event of reinnervation or for a maximum of 1 year. ES-parameters were set during the first visit and confirmed/adapted every month thereafter. At each visit, patients underwent needle-electromyography, 2D-fotographic documentation and 3D-videos. Whereas 2D-images allow Euclidean measurements of facial symmetry, 3D-images permit detection of metrical divergence within both sides of face. Using the 2D and 3D-fotographic documentation, we aim to prove that ES is able to prevent muscular atrophy in patients with facial paralysis. Results In total 15 patients were recruited (medium 53 years, min. 25, max. 78; 8 female, 7 male). They underwent ES for a maximum of one year without serious adverse events. All patients were able to follow the ES protocol. On a short term, we could detect positive effects of ES on the extent of asymmetry of mouth corners. Preliminary results show positive effects leading to improvement of symmetry of denervated faces. Conclusion A positive short-term effect of ES on facial symmetry in patients with total paralysis could be shown. The improvement of optical appearance during ES has a positive effect on patients' satisfaction and resembles a promising, easily accessible marker for facial muscles in facial paralysis patients. Improving facial symmetry by ES might also be linked to preventing facial muscle atrophy. Acknowledgements Sponsored by DFG GU-463/12-1 and IZKF

Peripheral facial palsy is an illness in which a one-sided ipsilateral paralysis of the facial muscles occurs due to nerve damage. Medical experts utilize visual severity grading methods to estimate this damage. Our algorithm-based method provides an objective grading using 3D point clouds. We extract from static 3D recordings facial radial curves to measure volumetric differences between both sides of the face. We analyze five patients with chronic complete peripheral facial palsy to evaluate our method by comparing changes over several recording sessions. We show that our proposed method allows an objective assessment of facial palsy.

One of the main reasons for a half-sided facial paralysis is caused by a dysfunction of the facial nerve. Physicians have to assess such a unilateral facial palsy with the help of standardized grading scales to evaluate the treatment. However, such assessments are usually very subjective and they are prone to variance and inconsistency between physicians regarding their experience. We propose an automatic non-biased method using deep features combined with a linear regression method for facial palsy grading index prediction. With an extension of the free software tool Auto-eFace we annotated images of facial palsy patients and healthy subjects according to a common facial palsy grading scale. In our experiments, we obtained an average grading error of 11%

Background: To evaluate the face-specific quality of life after hypoglossal-facial jump nervesuture for patients with long-term facial paralysis. Methods: A single-center retrospective cohort study was performed. 41 adults (46% women; median age: 55 years) received a hypoglossal-facial jump nerve suture. Sunnybrook and eFACE grading was performed before surgery and at a median time of 42 months after surgery. The Facial Clinimetric Evaluation (FaCE) survey and the Facial Disability Index (FDI) were used to quantify face-specific quality of life after surgery. Results: Hypoglossal-facial jump nerve suture was successful in all cases without tongue dysfunction. After surgery, the median FaCE Total score was 60 and the median FDI Total score was 76.3. Most Sunnybrook and eFACE grading subscores improved significantly after In surgery. Younger age was the only consistent independent predictor for better FaCE outcome. Additional upper eyelid weight loading further improved the FaCE Eye comfort subscore. Sunnybrook grading showed a better correlation to FaCE assessment than the eFACE. Neither Sunnybrook nor eFACE grading correlated to the FDI assessment. Conclusion: The hypoglossal-facial jump nerve suture is a good option for nerve transfer to reanimate the facial muscles to improve facial motor function and face-specific quality of life.

5 patients with facial paralysis received a home-based electrostimulation (ES) with charge-balanced biphasic triangular impulses 3x5min twice a day. Before the first ES, and every 4 weeks during the ES, all patients underwent regular needle electromyography (EMG), ultrasound and 3D-video measurements. Additionally, stimulation settings, patients? home-stimulation diaries and parameters were recorded. No patient reported relevant adverse events linked to ES. Training with optimized electrode positioning was associated with stable and specific zygomaticus muscle activation, accompanied by a reduction of the necessary minimum pulse duration from 250 to 70ms per phase within 16 weeks. Even before reinnervation, objective 3D-videos, sonography, MRI, and patient-related parameters (FDI, FaCE) improved significantly compared to the pre-stimulation situation. Preliminary results suggest that ES home-based training is beneficial for patients with denervated facial muscles in reducing muscle atrophy, maintaining muscle function and improving facial symmetry. A lack of relevant adverse events shows that such ES is safe. The patients showed excellent compliance with the protocol and rated the stimulation easy and effective.

Background: Photography and video are necessary to record the severity of a facial palsy or to allow offline grading with a grading system. There is no international standard for the video recording urgently needed to allow a standardized comparison of different patient cohorts. Methods: A video instruction was developed. The instruction was shown to the patient and presents several mimic movements. At the same time the patient is recorded while repeating the presented movement using commercial hardware. Facial movements were selected in such a way that it was afterwards possible to evaluate the recordings with standard grading systems (House-Brackmann, Sunnybrook, Stennert, Yanagihara) or even with (semi)automatic software. For quality control, the patients evaluated the instruction using a questionnaire. Results: The video instruction takes 11 min and 05 and is divided in three parts: 1) Explanation of the procedure; 2) Foreplay and recreating of the facial movements; 3) Repeating of sentences to analyze the communication skills. So far 13 healthy subjects and 10 patients with acute or chronic facial palsy were recorded. All recordings could be assessed by the above mentioned grading systems. The instruction was rated as well explaining and easy to follow by healthy persons and patients. Discussion: There is now a video instruction available for standardized recording of facial movement. This instruction is recommended for use in clinical routine and in clinical trials. This will allow a standardized comparison of patients within Germany and international patient cohorts.

In the field of otorhinolaryngology, the dysfunction of the facial nerve is a common disease which results in a paresis of usually one half of the patients face. The grade of paralysis is measured by physicians with rating scales, e.g. the Stennert Index or the House-Brackmann scale. In this work, we propose a method to analyse and predict the severity of facial paresis on the basis of single images. We combine feature extraction methods based on a generative approach (Active Appearance Models) with a fast non-linear classifier (Random Decision Forests) in order to predict the patients grade of facial paresis. In our proposed framework, we make use of highly discriminative features based on the fitting parameters of the Active Appearance Model, Action Units and Landmark distances. We show in our experiments that it is possible to correctly predict the grade of facial paresis in many cases, although the visual appearance is strongly varying. The presented method creates new opportunities to objectively document the patients progress in therapy.
